Check Out Peter Sagan’s Custom Specialized S-Works Tarmac

Sagan’s new ride is lighter with better handling.

Matt Phillips |
s1

Sagan’s new ride is lighter with better handling. – By Matt Phillips

s1

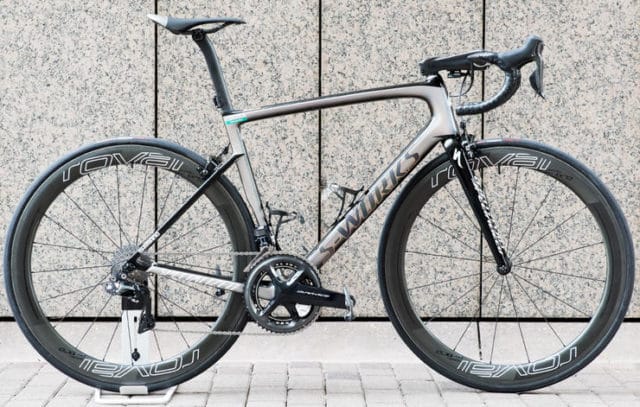

Five-time green jersey winner Peter Sagan completed stage two of the Tour aboard his customised 2018 Specialized Tarmac. Launched the day before the Tour’s July 1 kickoff, the new Tarmac features an all new frame design that’s more aerodynamic, and a significant weight reduction as well: a 56cm frame–Sagan’s size–carries a claimed weight of just 733 grams with the “ultralight” finish.
s2Sagan’s Bora Hansgrohe team currently rides a full Shimano Dura Ace Di2 drivetrain. The 4iiii dual-side power meter implanted in the crankset keeps track of Sagan’s watts.s3Though clinchers, and tubeless clinchers, have been spotted in the professional ranks more regularly of late, glue-on tubular tyres are still the choice for the majority of the peloton, Sagan included. Sagan rolls on 26mm-wide S-Works Turbo Allaround 2 tubulars from Specialized.s4One of the most impressive details of the new Tarmac: room for up to 30mm tires with rim brakes. Even with Sagan’s 26mm-wide tyres, plenty of clearance remains.

s5

The finish on Sagan’s bike looks subtle at first, but a closer look reveals complex details. The silver has an iridescent quality that, depending on the light, reflects back the colors of the rainbow: an homage to Sagan’s World Champion jerseys. The outline of the “S-Works” logo appears gold, but it too changes colors as the viewing angle changes. Small touches of Bora-Honsgrohe’s team colour–a light green–provide tasteful accents.

s6

Like the bike he rode in last year’s Tour, Sagan’s new Tarmac uses Specialized Aerofly flat handlebar. The 250 gram (claimed) carbon bar features a wing-shaped top section which helps the bar cut 17 seconds from a 40k ride (compared to a traditional drop bar), claims’s Specialized’s product information.

s7

This K-Edge out-in front mount for Garmin Edge is laser etched with one of Sagan’s nicknames.

s8

This port in the downtube is unused when running an electronic drivetrain like Sagan. When a mechanical drivetrain is used, the blank is swapped for a different insert that routes the derailleur cables through the down tube.

s9

Double-sided tape holds the Shimano Di2 junction box in place . Note the electrical tape covering up the sponsor-incorrect stem: a Zipp SL Sprint.
s10

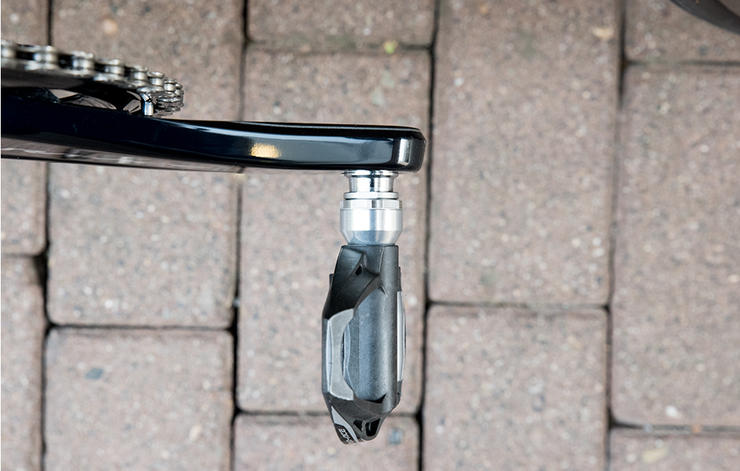

Sagan rides Shimano Dura Ace pedals with the optional +4mm wider axles.
s11

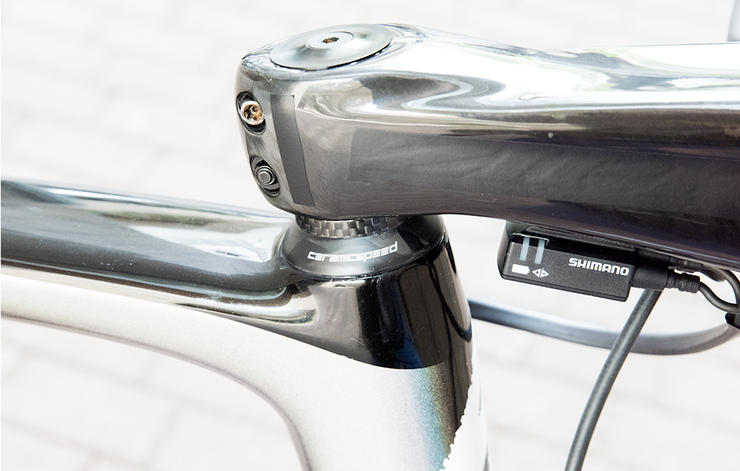

Smooth steering provided by team-sponsor Ceramic Speed’s ceramic-bearing headset.
s12

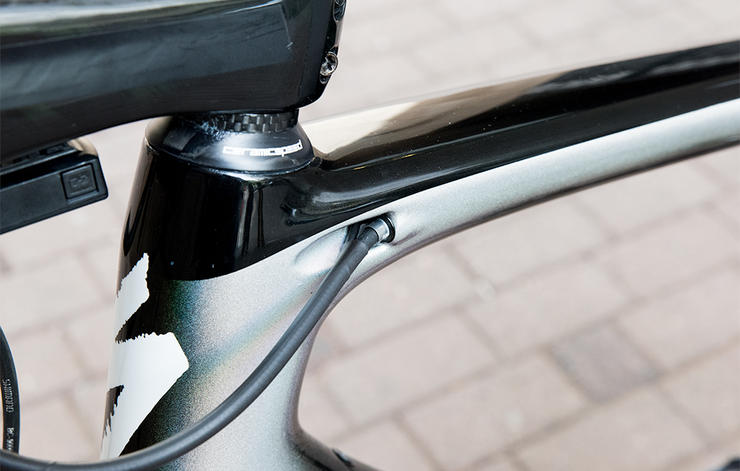

This entry port in the top tube does double duty. Both the brake cable and the Shimano Di2 wire-just visible behind the brake housing-enter though this hole.
s13
Sagan’s S-Works Romin Evo saddle is colour matched to his bike. The line in the center of the saddle was a reference point used by mechanics to ensure all Sagan’s bikes are set up the same.
s14

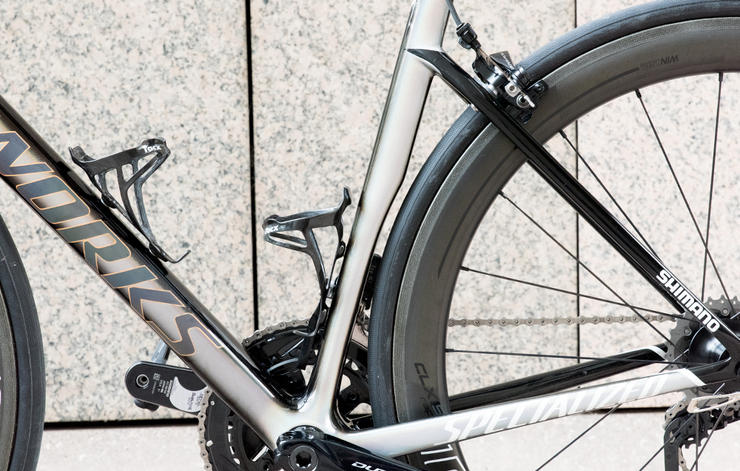

Some of the most obvious outward changes to the new Tarmac are the dropped seatstays and wheel cutout in the seat tube.
s15

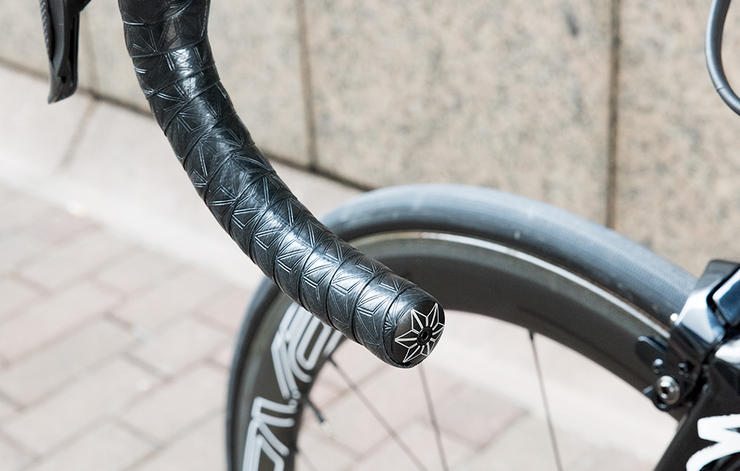

Like the Tinkoff team he rode for last year, Sagan’s new team uses Supakaz Super Sticky Kush bar tape. The tape has a sticky surface, and offers some cushioning.
s16

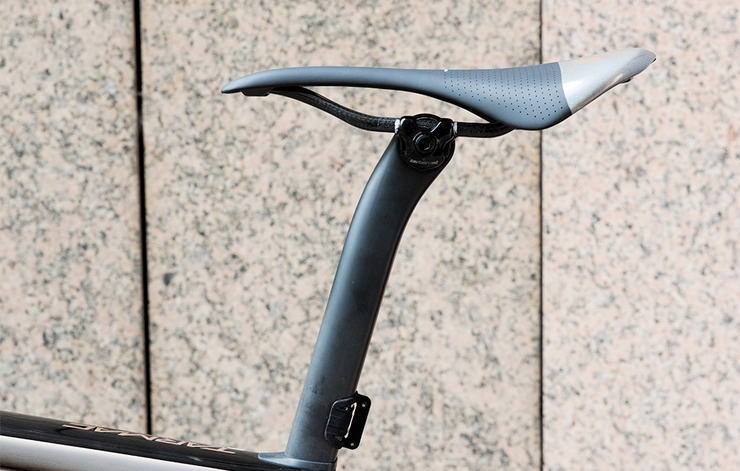

The new Tarmac uses a proprietary shaped seatpost–the previous model used a round 27.2mm post. The new post is both more aerodynamic and smoother riding than a round post, claim Specialized representatives.
s17

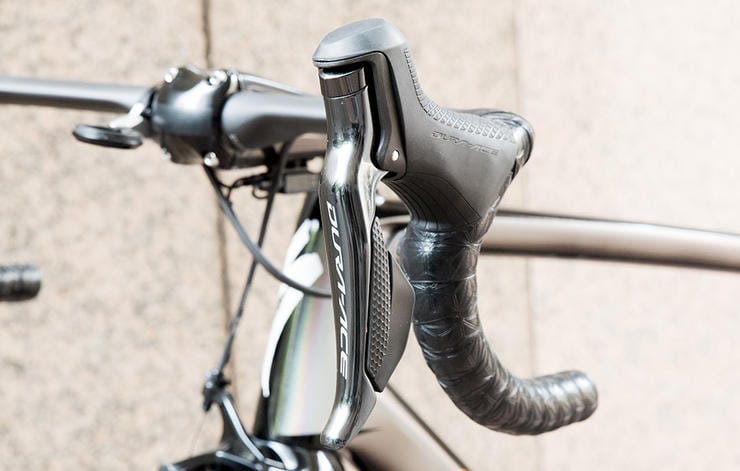

Sagan’s new Tarmac is built with the newest version of Shimano’s Dura Ace Di2 drivetrain. This group’s shifting performance is the standard by which all other groups are judged.
